Country of Origin: |
China |
Main Export Markets: |
|
Detailed Trade Lead Description |

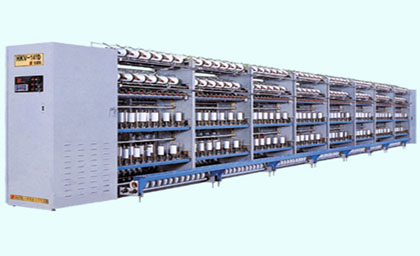

Standard number of spindle for single covering:224 Spindle pitch:200 Number of section:7 Numer of spindler per section:32 Dimension of machine:15020×1326×2010(mm) Power:22(kw) Twisting range:400~2600(T/M) Spindle speed:17000~23000RPM, the speed will be decreased, when the capacity is increased Spindle speed adjustment:change pulley(or adjusted by inverter) Size of take up bobbin:160×φ69×φ56.5(mm) Capacity of take up bobbin:≤1.2kg Size of yarn supply bobbin:135×φ68×φ40 Take up speed:MAX.40(m/min) Forming type: mechanical forming Twisting direction:S、Z stretching times for spandex:1.6~4 times Suitable titer:20~150D Remark: for the covering machine, different types have different specifications, we can design it according to customer’s requirement.
|
|
 |
