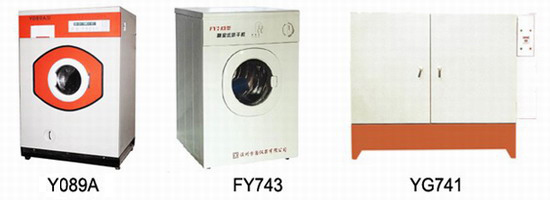

| YG089A Fully Automatic Washing Shrinkage Tester
INTRODUCTION
Fabric Testing Systems. Accelerated washing and drying apparatus for knitted and woven fabrics to assess shrinkage in accordance with international test methods. Also useful for assessing fabric stability, color fastness, finish durability, spirality and pilling to washing / drying. Complete washing and drying cycles in less than 15 minutes. Fitted with stainless steel basket with 5 sample chambers Keypad control of test parameters with manual or automatic operation. Hot and cold water supplies, drainage and compressed air required.
APPLICATIONS
ISO6330-2000, 5077
SPECIFICITION
(1) Working mode: MCU controller, User options for editing and customizing operations, Manual or automatic operation of up to 10 programmes to meet different standards.
(2) Washing machine model front-loading, orizontal rotating cage
( 3) Diameter of rotating cage 515 ( + -) 5mm
( 4) Depth of rotating cage 335 ( + -) 5mm
( 5) Interval between internal and external cage 28 ( + -) 1mm
( 6) Number of lifter 3
( 7) Height of lifter 50 ( + -) 5mm
( 8) Rotating motion
Normal mode: clockwise rotating 12 ( + -) 0. 1s, pause 3 ( + -) 0. 1s,
Anticlockwise rotating 12 ( + -) 0. 1s, pause 3 ( + -) 0. 1s
Soft mode: clockwise rotating 3 ( + -) 0. 1s, pause 12 ( + -) 0. 1s,
Anticlockwise rotating 3 ( + -) 0. 1s, pause 12 ( + -) 0. 1s
( 9) Rotation speed washing 52r / min
extraction (500 ( + -) 20) r / min;
( 10) Watering duration < 2min (water in high level 13Cm)
( 11) Drainage duration < 1min (water in high level 13Cm)
( 12) Heater power 5. 4 ( + -) 2% kW
( 13) Instrument Size 780 x 600 x 1200 mm (L x W x H)
( 14) Instrument Weight 240kg
FEATURES
(1) No need to fix to ground with foot screw, operating stably,
(2) Soft link between rotating cage and rame, low vibration and noise,
(3) Frequency conversion motor, switch moothly between high speed and low speed, low temperature increment of motor,
(4) Keypad control with 4 line x 20 character LED display,
(5) No touch capacitance water level meter, accurate water level
(6) 5 special washing mode for Brand Nike and Adidas
STANDARD CONFIG
(1) Mainframe;
(2) Sling agitator;
(3) Diameter 515mm standard rotating cage;
(4) Frequency converter, frequency onversion motor;
(5) Water level meter |
|
|
