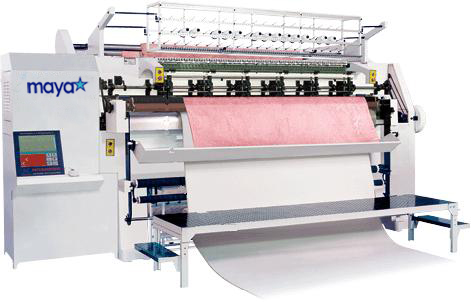

| MAYA Computerized Quilting Machine |
| Post Date :2007-09-14 |
| Expire Date :2007-12-08 |
 View Basket |
| 10 |
| Detailed Trade Lead Description |
| Purpose：Shuttle quilting machine is very similar with sewing machine, for it has bottom thread, very tightly quilt. This series shuttle-quilting machine mainly used for quilting the thin products, for example: bedspread, Bed sheet, quilt covers, garments, seat-covers and household ornaments. The thickness should be≤20mm. Different patterns are available. Multi – span independent pattern (360°/180°quilting is available ).
Automatic pause in case of Partial thread – breaking , automatic needle–lifting and computerized speed adjustment .
Highest speed of operation and lowest power consumption among all the domestic brands
Advanced computerized control system, advanced machine structure, high precision of quilting, dispense with too much parameter adjustment or pattern modification during quilting.
Based on the drawing method of CAD, precise pattern, fast and easy operation.
Strong function of pattern – combination , quilting different patterns in each row of cloth as long as 3.2 meters .
Quilt simple embroidery pattern.
Operation detecting and indicating for your checking as easy as possible
Specification MY-64-2 MY-64-3 MY-94-2 MY-94-3 MY-98-3 MY-102-2 MY-102-3 MY-118-3 MY-128-3
Dimension
(L×W×H) 3200
1050
1700 3200
1150
1700 4150
1050
1750 4150
1150
1750 4600
1150
1800 4700
1050
1800 4650
1150
1800 4810
1150
1800 5100
1150
1800
Width of quilting 1700 1700 2450 2450 2550 2650 2650 3000 3300This series shuttle-free quilting machine is widely used for quilting high quality mattresses, Simmons Bed; quilt covers, beddings and household ornaments with the thickness≤50mm. The very thick Mattresses and Simmons bed can be quilt only by Shuttle free quilting machine. Different patterns are available. Very thick material s’ quilting can be suitable.
High steel Machine body, high running speed, low vibration, low noise, and no impact.
Advanced computerized control system, quilting with high precision, dispense with too much parameter adjustment or pattern modification during quilting.
CAD drawing method, precise pattern, shortcut and convenient operation
Strong pattern combining function and multi span quilting function, can quilt different patterns in each row of different mattresses.
Status detecting and indicating, you can know the whole machine working condition at one glance.
Parameter
Dimension(L×W×H) ：4715×1200×1925mm
Width of quilting：2450mm
Space between needle rows：50.8,127(5”)、76.2,152.4(6”)
Space between needles：25.4
X-axis movement distance：430
Thickness of quilting≤50mm
Length of step：3-6
Speed of production：45~180m/hour
Model of needle：24/180
Speed of main shaft：650~930RPM
Power：4KW
Voltage ：220V/380V 50HZ/60HZ
Gross weight：4000kg
|
|
|
