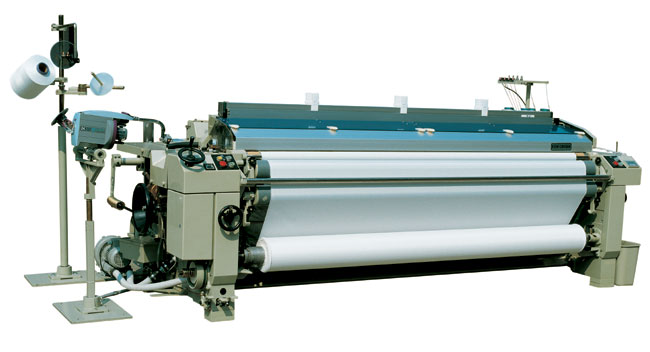

| Single Nozzle Plain Shedding Water-Jet Loom With Electronic Measuring&Storage System |
| Detailed Trade Lead Description |
| The JW-851CH is an new type of water jet loom developed from the JW-851 model. Mainly used for large width fabric; it also has reinforcement on the let-off system, shedding section and take-up system for excellent continuous high-speed working
Features:
1) Outstanding performance in weaving high-density cloth
2) Wider workable range of yarns and fabric
3) The optional single-pump double nozzle electronic measuring
and storage system or double-pump two nozzle electronic measuring and
storage system, tappet shedding device or dobby shedding device can
be mounted on this water jet loom
Specifications:
1) Reed width:
a) 190, 210, 230, 250cm
b) 280, 320, 350, 360cm
2) Filling insertion rate: 2,280m/min max.
3) Head frame:
a) Tappet shedding: 2, 4, 6, 8, 10pcs max.
b) Dobby shedding: 16pcs max.
4) Power: 2.5, 3.5, 4.6kW
5) Weft density: 5 ~ 60picks/cm
6) Rotational speed: 1,200rpm max.
Yarn:
1) Nylon-6 filament
2) Nylon-6 non-sizing
3) Polyester filament
4) Polyester draw textured
5) Polyester spun yarn
6) Polyester high twisting yarn
7) Polyester POY
8) Polyester non-sizing filament
9) O.P. yarn
10) Taslon yarn
|
|
|
| |
