Weaner flooring Country of Origin: Main Export Markets:

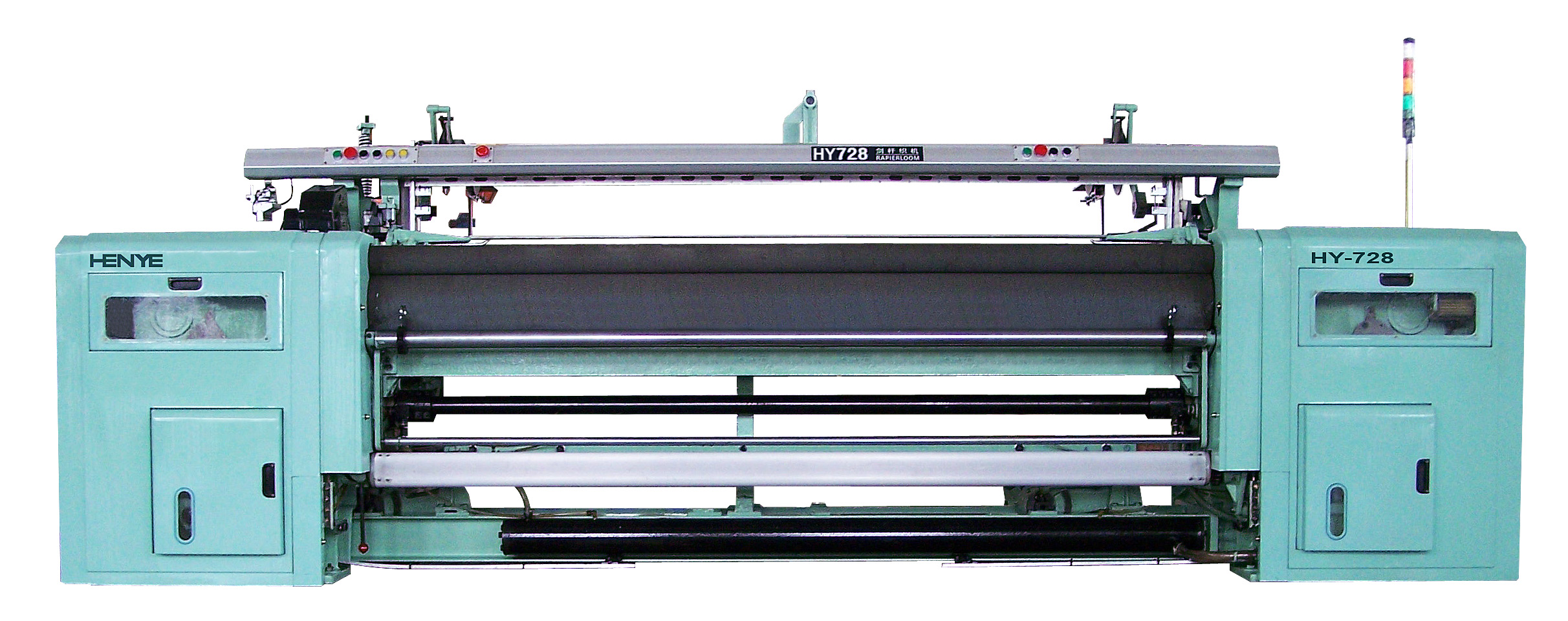

HY-728 High Speed Rapier Loom Post Date :2007-03-30 Expire Date :2008-03-29     View Basket Reed Width190cm-360cm Detailed Trade Lead Description Insertion Rate (m/min) 780 Reed Width (mm) 1900-3600 (adjust by each 600mm) Dia. of Warp Beam (mm) 800 Dia. of cloth Roller (mm) 600 Power 4.7kw-5.5kw Weight 3.8T Size (mm) 4700 X 1800 X 1350 (reed width 2300) Shedding Device Positive dobby, max 20 pcs heald frame Yarn Range Spun yarns: Ne 120 – Ne 1.8 Filament yarns: 50 den – 4000 den ( 2.5dtex, 450 dtex) Shedding Device Adopting rotary electrical hands device or positive mechanical hands device,mounting mode:bottom,max 20 pcs heald frames Weft Insertion Separate sley bars positively driven by conjugate cams at both ends Automatic Pick Finding Automatic pick finding function and anti-bar function,the automatic reversal of dobby can be adjusted as required Weft Color Selection Electrical color choosing device:Max.9 weft colors (optional) Weft Stop Motion With piezoquartz electronic ceramic and electronic transducers Beat-up Motion Separate reed positively driven by close conjugate cams at both ends Warp Let-out Motion Continuous let-out of warp by compound regulating system.Both the warp beam diameter detector and back roll tension regulating device work together to change the drive ratio of the PIV stepless speed tranmission,thus and even warp tension and smooth,continous warp let-out motion is ensuired Warp Stop Motion Provided with electrical contacts Take-up Motion Positive continuous take-up motion with weft density regulators Weft Density Regulation Stepless control gearing and infinite weft density regulator,no gear change within 2-80 wefts/cm Inspection Mode Electronic detectors for the loom operation and operator’s eye inspection for fabric quality Signal Treatment Four color indicators respectively for weft stop,warp stop,call signal and fabric fixed length
