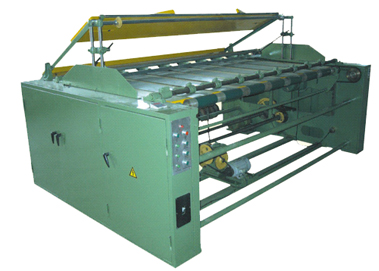

| GA841 Model Hooking Machine |
| Post Date :2008-08-19 |
| Expire Date :2009-08-19 |
 View Basket |
| Detailed Trade Lead Description |
| Of series product type,automatic cloth folding machines used in weaving,dyeing and printing workshops can fold cloth or fabric deliver from cloth brusher or fabric inspecting machine into piece goods at a set length.
Three motors are used to control folding,beam elevating and cloth discharge device respectively.All these actions like sewing-up signal,delayed stopping and automatic beam lifing,blade setting,cloth discharging,beam falling and cloth folding are controlled electrically.Besides,there are two automats,one controls storage box(it operates while cloth exists,otherwise if stops),the other controls cloth delivery(it stops while cloth is on the folding table,otherwise it works).
Principles of automation:Switche control is used to command sewing-up signal and motors,and stroke switchs are equipped for coordinating each action.By adjusting positions of stroke switches,the duration of automatic processes could be controled as production required.
This electronically controlled machinery with ball bearing drive features convenience,stability and reliabillity in operation,low noise,novel apperance and rational construction.
MAIN SPECIFCATIONS
Table width(mm) 1100 ， 1300 ， 1600 ， 1800 ， 2000 ， 2500 ， 2800 ， 3000
Length per fold(mm) 900~1020
Lifting of folding platen no less than 170mm
Folding speed 110~180 80 folds/min
200 65folds/min
250~300 40folds/min
Motors For folding 0.6kw 940r/min
For elevating 0.37kw 910r/min
For cloth discharging 0.6kw 940r/min
Overall dimensions(mm) GA841-110 2160*1790*1500
GA841-130 2160*1990*1550
GA841-160 2160*2290*1500
GA841-180 2160*2490*1500
GA841-200 2160*2690*1500
GA841-250 2160*3190*1500
GA841-280 2160*3490*1500
GA841-300 2160*3690*1500
Weigh,approx.(kg) GA841-110 1000
GA841-130 1140
GA841-160 1300
GA841-180 1440
GA841-200 1600
GA841-250 1780
GA841-280 1900
GA841-300 2140
|
|
|
