| GA799-I Towel Rapier Loom |
| Post Date :2008-08-24 |
| Expire Date :2009-03-21 |
 View Basket |
| with electronic dobby & pick-finding device |
| Detailed Trade Lead Description |

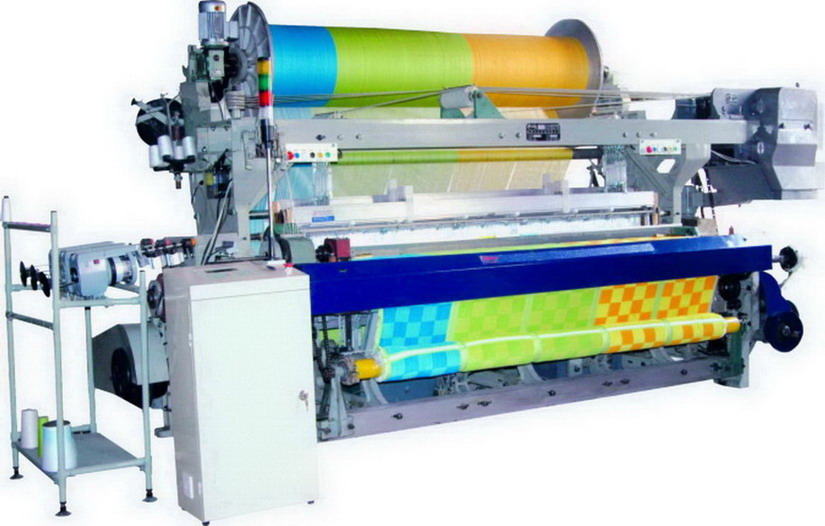

| The product: GA799-I Towel Rapier Loom
the Product has Patented .The loom is suitable chiefly to weave the fabric made of cotton and wool, it is capable of weaving all kinds of spiral-satin or jacquard-satin towels for face, tea, square, bath etc.
Flexible Towel Rapier Loom the Product has Patented Technical Specification
The loom adopts central oil, computerized, Upper and down warp gauze, automatic warp stop
Reed width (mm): 2000， 2300， 2600，2800 ，3000， 3300
Rotation speed (R.P.M.): 250~220 rpm
Form of terry: Producing terry loop by movable reed
Height of terry (mm): Stepless adjusting between 0 and 10
Selection weft: 8 colors
Dia of warp beam flange (mm): 600~800
Max.dia.of rolling-up (mm): Ф450
Number of heddle frame: 16 pieces
Selvage device: Leno selvage
Power of motor (KW): 2.6
Electrical control: Advanced P.L.C
Weight (Kg): 2900 including dobby
Form of let-off: Warp positive let-off motor by computer control
Overall dimension (mm): 3430(l)*1927(W)*2120(H) (75’’)
Running operation: Gauzes switches are provided at two sides of the machine, controllable, inching, single pick insertion, start, position stop, emergency stop, with automatic inverse running, normal and reverse rotation.
|
|
|
| |
