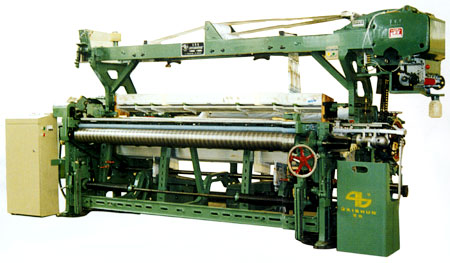

| GA747 Rapier Loom |
| Post Date :2005-04-12 |
| Expire Date :2006-04-12 |
 View Basket |
| Detailed Trade Lead Description |
| Range of Use:
The machine is applicable mainly for weaving plain cloth, twill cloth, Atlas and Dobby with cotton, linen, chemical fiber and thin silk.
Major Features:
1. The machine occupies a same space with the box shuttle loom of same reed width.
2. With advanced CAD, many components adopt a kind of low weight, high intensity carbon fiber composite materials and Aluminum Alloy materials which make the configuration simple and secured.
3. The main structures and let-off frames highly share the parts with shuttle looms, enabling a convenient repair and maintenance.
4. Compared with shuttle looms, the speed has been raised by 30%-40.
5. The noise is 10-15db lower than shuttle looms of the same type, which has greatly improved the working environment.
6. The machine is applicable for a large range of fabrics from zephyr to medium-weight.
7. With high price-quality, this generic type rapier loom meets the general conditions of China.
Main specification and technology reference:
1. Reed Width: 180, 280;
2. Number of Heald Frames: 16 (totally 20 blades of Dobby)
3. The first harness dobby movement range: 65-160mm
4. Rotation Speed of Crankshaft: 190-200R/M
5. Selection of Weft Number: 4-color, 6-color weft selection (Dobby Controlled)
6. Diameter of Beam Flange: 550-600mm
7. Space between Beam Flange: Max.1860mm, Min.2860mm
8. Max. Cloth Rolling Diam: 300mm
9. Speed of Motor: 960R/M
10. Power of Motor: 1.5kw
11. Means of Operation: Electromagnetic Clutch Brake Control (start/brake)
12. Type of Warp Feeding: SJ-P Outer Vertical Warp Feeding
13. Warp Stop Motion: 4-6 rows of Turnwrest Electronic Stop Motion or Electronic Stop Motion.
14. Weft Stop Motion: Piezo-electric weft Stop Motion
15. The Shedding Means: Dobby Shedding, Horizontal Spring Box Downpull |
|
|
| |
