Weaner flooring Country of Origin: Main Export Markets:

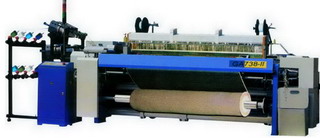

GA738-II High-speed Rapier Loom Post Date :2008-08-24 Expire Date :2009-03-21     View Basket High-speed rapier loom with down dobby Detailed Trade Lead Description The loom is suitable chiefly to weave natural fiber (cotton, wool, flax), chemical fiber and blended fiber, particularly suitable for weaving heavy fabric. It is capable of weaving small jacquard fabrics; the machine can accommodate a harness frame of 20 shafts. RAPIER LOOM MODELGA738-II SPECIFICATION Nominal reed width: 2000-2200mm Speed: Max operating speed 320 pick/min,max insertion rate 600m/min Weft yarn count range: Cotton-5Ne-80Ne Wool-8Nm-130Nm Man-made fibers-1200dtex-75tex Fabric weight: From 70 to 600g/sqm Power: Main motor 3kw-6pole Shedding: Lower positive mechanical dobby max.20 shafts, pitch 12 or mechanical jacquard. Beat-up: Four-bar linkage with short connecting rod Let-off: Mechanical positive and continuous warp let off, pick density from 4 to 73 picks/cm. Take-up: Mechanical positive and continuous warp cloth take-up. pick density from 4-73 picks/cm，the max winding diameter Full rolling diameter is 500mm Warp stop: Electrical warp stop device with 6 bars Weft stop: Piezo-electronic weft monitor with high sensitivity Weft selection: Electronic weft selection which is available in single or mixed or multicolor up to 6 colors. Weft feed: The loom is possible to be equipped with different types of weft accumulators. Selvedges: Leno selvedges are driven by the 1st and 2nd of heald frame Electrical control: The most advance electrical control system, microprocessor units guarantees all the machine functions, supervising operation, collecting and storage and display of productivity data. Lubrication: The whole needful lubricating point is concentrative lubricated by means of a manual pump.
