Weaner flooring Country of Origin: Main Export Markets:

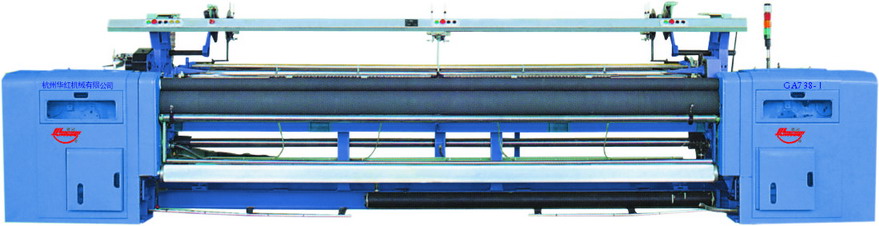

GA738-I High-speed Rapier Loom Post Date :2008-08-24 Expire Date :2009-03-21     View Basket High-speed rapier loom with down dobby Detailed Trade Lead Description The loom suitable for weaving kinds of natural or man made fabric or six types of medium weight fabric Nominal reed width: 2000 to2200mm Speed: Max operating speed 350 picks/min, max. Insertion rate 780m/min (Remark: width: 1.9m) Weft yarn count range: cotton-5Ne-8Ne wool-8Nm-130Nm Man-made fibers-1200dtex-75tex Fabric weight: From 70 to 600g/sqm Power: Main motor 4.8kw-6 pole Shedding: Lower positive mechanical dobby .Max.20 shafts. Pitch 12mm or mechanical jacquard. Beat-up: Double cam weft insertion and beating. Let-off: Mechanical positive and continuous warp let-off, pick density from 4 to 73 picks/cm. Take-up: Mechanical positive and continuous warp cloth take-up pick density from 4 to 73 picks/cm. the max .winding dia full rolling diameter is 500mm. Warp stop: electronic warp stop device with 6 bars. Weft selection: electronic weft selection which is available in single or mixed or multicolor up to 6 colors. Weft feed: the loom is possible to be equipped with different types of weft accumulators. Selvedges: leno selvedges are driven by the 1st and 2nd shaft of heald frame. Electrical control: the most advance electrical control system, microprocessor units guarantees all the machine functions, supervising operation, collecting and storage and display of productivity data. Lubrication: The whole needful lubricating point is concentrative lubricated by full-automotive means.
