Weaner flooring

Country of Origin:

Main Export Markets:

FADIS "AIR JET 900"

Post Date :2005-06-29

Expire Date :2006-06-29

View Basket

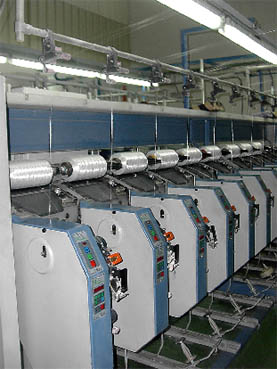

FADIS PATTERN AIR JET WITH 12 SPOOLS + CREEL WITH AUTOMATIC BREAK STOP MOTION, 4 YARNS PER POSITION , PREPARED FOR COATING ELASTOMERIC YARN BY AIR JET, AND TO PRODUCE BE COMPOSED YARNS.

Detailed Trade Lead Description

THE AJ900 REPRESENTS A NEW GENERATION OF AIR-COVERING MACHINES DEVOLOPE USING THE ESTENSIVE EXPERIENCE GAINED SINCE THE PIONEERING INTRODUCTION OF THE FIRST HFP ( SLIDEJET HFP-FOR THE INTERLACING OF ELASTANE WITH FILAMENT AND STAPLE FIBRE YARNS). USING THE AIR JET 900 IT IS POSSIBLE TO CREATE NEW YARNS BY CONTROLLED INTERMINGLING OF FILAMENT AND/OR SPUN YARNS THROUG A WIDE RANGE OF SPECIAL AIR JETS. THE AIR JET 900 PROCESS REPRESENTS A PROVEN ALTERNATIVE TO CONVENTIONAL COVERING TECHNOLOGIES WITH WORKING SPEEDS OF UP TO 900 mt/min. WHILST AVOIDING THE ANCILLARY OPERATIONS (BOBBIN WINDING AND REWINDING OF COVERED YARN) NEEDED FOR CONVENTIONAL COVERING. THE AIR JET 900 WORKS AT CONSTANT AND CONTROLLED YARN SPEEDS AND TENSION AND TOGETHER WITH THE ERGONOMIC MACHINE DESING, SUPERB YARN QUALITY AND MAXIMUM EFFICIENCY ARE ENSURED. STRUCTURE SINGLE SIDED WITH SECTIONS OF 6 WINDING HEADS UP TO A TOTAL OF 6 SECTIONS PER MACHINE ( OUR MACHINE HAS 2 SECTIONS= 12 SPOOLS ) DRIVE END CONTAINING THE ELECTRONICAL AND GENERAL CONTROL SYSTEMS FOR WORKING SPEED AND STARTING RAMP. DRIVE SYSTEM EACH WINDING HEAD HAS AN A.C. MOTOR CONTROLLED BY AN INVERTER. WINDING HEADS YARN GUIDE RUNNING IN AN OIL BATH WITH A MAXIMUM MECHANICAL SPEED OF ABOUT 900 mt/min. AND A TRAVERSE OF 250 mm. THE MACHINE CAN BE SET FOR TAKE-UP ON BOTH CONICAL CYLINDRICAL TUBES AND INCLUDES THE FOLLOWING FEATURES: - TRAVERSE ADJUSTMENT BETWEEN 150 AND 200 mm OR 200 AND 250 mm - SOFT EDGES - ANTI-PATTERING SYSTEM - CROSSING ANGLE ADJUSTMENT ( 12?14? 15?17? 18?20?) TAKE-UP CRADLE NEW TYPE OF CRADLE WITH FLANGED TUBEHOLDERS (COUNTERFLANGES), FULLY ADJUSTABLE FOR TAKE-UP BOTH ON CONICAL AND CYLINDRICAL TUBES. THE WEIGHT OF THE TAKE-UP PACKAGE IS COMPENSATED BY A SPECIAL, ADJUSTABLE DAMPER SYSTEM. LOWER CREEL MOVABLE FOR EASY PACKAGE CHANGING WITH CAPACITY FOR TWO FEED PACKAGES PER WINDING HEAD COMPLETE WORKING TOP TO TAIL. FEEDER THE YARN FEEDING SYSTEM IS TOTALLY POSITIVE TO OBTAIN REGULAR COVERING RESULTS. THIS SYSTEM INCLUDES: -DRAWING AND UNWINDING SYSTEM FOR THE ELASTOMERIC YARN, ADJUSTALBE IN 10 POSITIONS. - FEEDER FOR THE ELASTOMERIC YARN. - POSITIVE FEEDER FOR THE CONTINUOUS FILAMENT AND-OR STAPLE FIBRE YARNS, ADJUSTABLE IN 10 POSITIONS. - FINAL FEEDING ROLLERS. TENSIONERS THE FLANGE TENSIONERS WIHT WEIGHTS FOR NON ELASTOMERIC YARNS ARE FITTED BEFORE THE FEEDING ROLLERS, IN ADDITION A CERAMIC GATE YARN TENSIONER IS PLACED AT THE JET EXIT. SENSORS ELECTRONIC SENSORS ON EVERY PLY. THE SENSORS CAN BE SWICHED OFF WHEN NOT NEED AND IS EQUIPPED WITH A TRIMMER TO ADJUST THE SENSITIVITY ACCORDING TO THE YARN NATURE AND COUNT. EVERY WINDING HEAD IS EQUIPPED WITH AN OPTICAL SENSOR PLACED BEFORE THE TAKE-UP TO TEST THE PRESENCE OF INTERMINGLED YARN. JET THE HEBERLEIN JETS, ONE PER WINDING HEAD IS EQUIPPED WITH AN OPTICAL SENSOR PLACED BEFORE THE TAKE-UP TO TEST THE PRESENCE OF INTERMINGLED YARN. OILING DEVICE CONTROLLED BY INDIVIDUAL MOTORS WHOSE SPEED DETEMINES THE OIL QUANTITY WITH ADJUSTMENT IN THE DRIVE END. THE TANK AND THE PUMP MOTOR ARE CENTRALIZED.THE OIL IS FILTERED BEFORE ENTERING THE SYSTEM AND ITS LEVEL IS KEPT CONSTANT ON THE WHOLE MACHINE. TAILING DEVICE USED TO GIVE A YARN TAILING PARALLEL TO THE TUBE BASE. THE RUNNING YARN IS AUTOMATICALLY FED THE YARN GUIDE WHEN THE TAIL IS COMPLETED WOUND. STOP AT PRE-SET DIAMETER THIS SYSTEM STOPS THE WINDING HEAD AUTOMATICALLY WHEN THE TAKE-UP PACKAGE HAS REACHED THE ESTABLISHED DIAMETER. DEVICES - 12 SPOOLS - CREEL WITH AUTOMATIC BREAK STOP MOTION, 4 YARNS PER POSITION.
