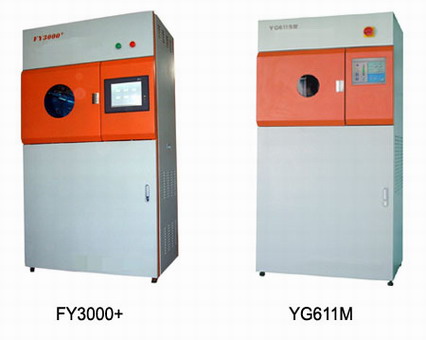

| YG611M AIR-COOLED WEATHER CONDITIONS METER
INTRODUCTION
AIR-COOLED WEATHER CONDITIONS METER. Reproduces the effects of sunlight, rain and dew. Tests materials by exposing them to alternating cycles of light and moisture and controlled, elevated temperatures. Simulates the effect of sunlight with fluorescent ultra violet lamps, simulating rain and dew with condensing humidity. 8 UV lamp positions and 11 specimen holders 75 x 300mm (3 x 12in) and 46 alum panels 75 x 150mm (3 x 6in). Touch screen display and control panel, irradiance control, calibration devices and lamps extra.
APPLICATIONS
AATCC16 ISO105-B02, B04, B06
SPECIFICITION
(1) Air-cooled Xenon Lamp Power 220V 50HZ 15A 3000W
(2) Turntable speed 5r/min
(3) Diameter of sample rack 350mm
(4) Max exposure area of specimen 100 x 45mm
(5) Number of specimen holders fastness to light: 10 pcs
fastness to light and perspiration: 2pcs
(5) BST 30 degree-110degree (+ -) 1degree
(6) BPT 30degree-100degree (+ -) 2degree
(7) Chamber temperature 25degree-85degree (+ -) 2degree
(8) Humidity range 15%RH - 85%RH (+ -)5%
(9) Irradiance range (25 ~ 55) (+ -) 1W/m2 @300 ~ 400nm (Wide bandwidth measurement)
(0.550 ~ 1.500) (+ -) 0.02W/m2 @420nm (Narrow bandwidth measurement)
(10) Xenon lamp power adjustment Automatic compensating system (patent)
(11) Humidity control use close loop control
(12) Display and control LCD display, digram indicate condition of chamber
(13) Instrument Size 900 x 620 x 1900mm(L x W x H)
(14) POWER 220V 50HZ 20A 4500W
(15) Instrument Weight 230kg
FEATURES
(1) Light source: 3000 watt air cooled xenon arc lamp; Sharp blue LCD Panel, the operator simply selects the required test module and test standard; English user interface, digram indicate condition of chamber, ease to use
(2) Use Mitsubishi 16bit MCU, more excellent anti-jamming,
(3) Low running cost, lastest saving electricity solution, 2.5KWH/hour, no need for extra regulator.n;
(4) Its manageable size is most appropriate to testing fabric samples, and easy access to sample holder.
(5) Ultrasonic humidification system makes spray water even and low noise,
(6) Dual redundant circuit designing to assure unit to work consistently and reliably,
(7) Use open designing program, We've also made the controls and menu-driven interface very easy to operate with minimal training. The graphics and layout make unit extremely user-friendly. You simply select the standard you want and the test is created automatically.
(8) Built-in diagnostics and warnings, Automatic prompt when lamp or optical filters require changing. Multi-position sensor to supervise working condition, temperature, humidity, fan, xenon lamp, and door to chamber, it makes device work properly and reliably;
(9) Use Driving clutch to connect turntable and motor, it makes turntable rotate freely and put sample easily without stopping unit; |
|
|
