| Computerized Quitling Machine |
| Post Date :2008-03-13 |
| Expire Date :2009-03-13 |
 View Basket |
| Detailed Trade Lead Description |
| HFJ-T（系列）電腦高速絎縫機
規格型號 HFJ-26T HFJ-28T HFJ-30T
最大裝被尺寸 2.6m×2.8m 2.8m×3.2m 3.0m×3.2m
最大落針尺寸 2.4m×2.6m 2.6m×3.0m 2.8m×3.0m
機 頭 單頭、單針、雙線鎖式線跡、大旋梭
機 針 勝家 MR5 18 ~ 21 #
縫厚能力 1000 g/m²
絎縫針速 500 ~ 2000 針/分
針 距 2 ~ 7 mm
機器外形尺寸（長×寬×高） 5.4 m×3.5 m×1.4m 5.6 m×3.7 m×1.4m 5.6 m×3.9 m×1.4m
電 源 AC 220 V，50 Hz，1.5 Kw
重 量 1500 Kg 1600 Kg 1800 Kg
♦ Machine features

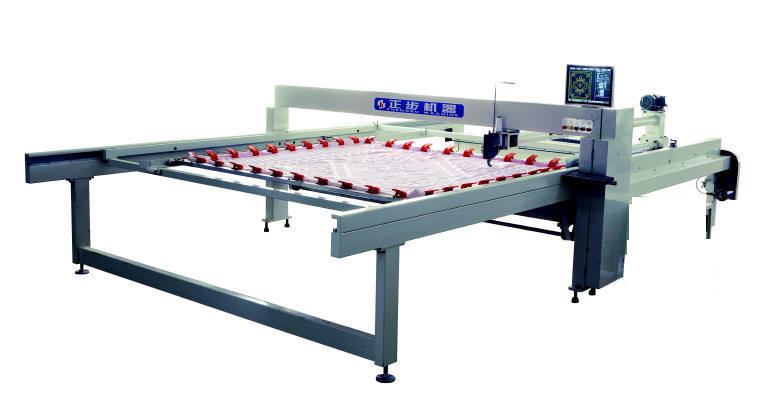

HFJ-T (series) computerized quilting machine, an economic model with good quality, applies to quilting all kinds of quilts and comforters.
☉ Empolying industrial control system makes the machine has stable quality, configured with system disk of large capacity, main shaft is driven by inverter, movement of X axis and Y axis by step motor driver.
☉ Capable of copy pattern and other files from USB, and copy or delete pattern files with pattern management function
☉ Has 2 sets of foot presser with the sewing head for your option in vary conditions, and their exchange are very convenient;
☉ Power consumption less than 1 kw;
☉ Use latest control card and upgraded control program, capable of reading patterns of variety forms;
☉ has function of pattern view and rotate or mirror pattern
☉ Capable of counting output, and resetting to zero;
☉ Provides 2 forms, backward and forward for retreat quilting, both retreat length and retreat stitch length can be defined;
☉ Needle automatically stays at upper position at pause time, upper thread breakage detection system which stops the machine automatically;
☉ Has 2 quilting modes, forward and backward; besides has function of moving forward and backward during pause time, and also threading for automatic mending;
☉ Shows information of current job graphically and operation method;
☉ Employing pattern tracing function makes needle location quickly in case of mending;
☉ Convenient in defining and revising frame range with setting function;
☉ Pattern size scales automatically according to change of pattern range and space;
☉ Has protection function against exceeding limit range;
☉ Function of test system, used to shoot problem, can detect the machine working status rapidly;
☉ Offset function makes it available to join separated patterns;
☉ with main shaft detection function can effectively avoid occur of accident of breaking quilt;
☉ has 2 ways for returning to original point, automatic or manual, thus machine can still be able to work even has problem of original sensor.
|
|
|
| |
